Y 28 X 36 X 7.8

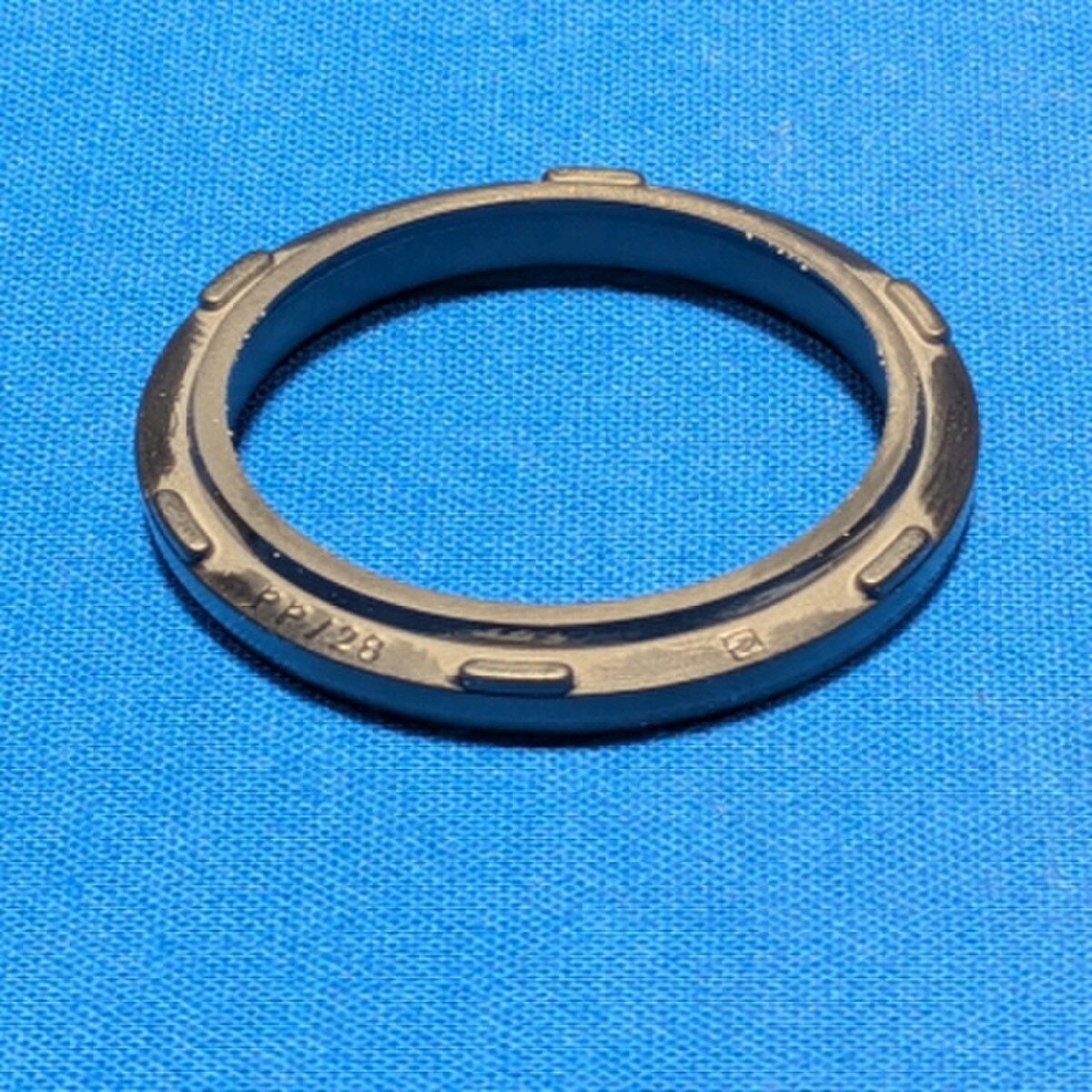

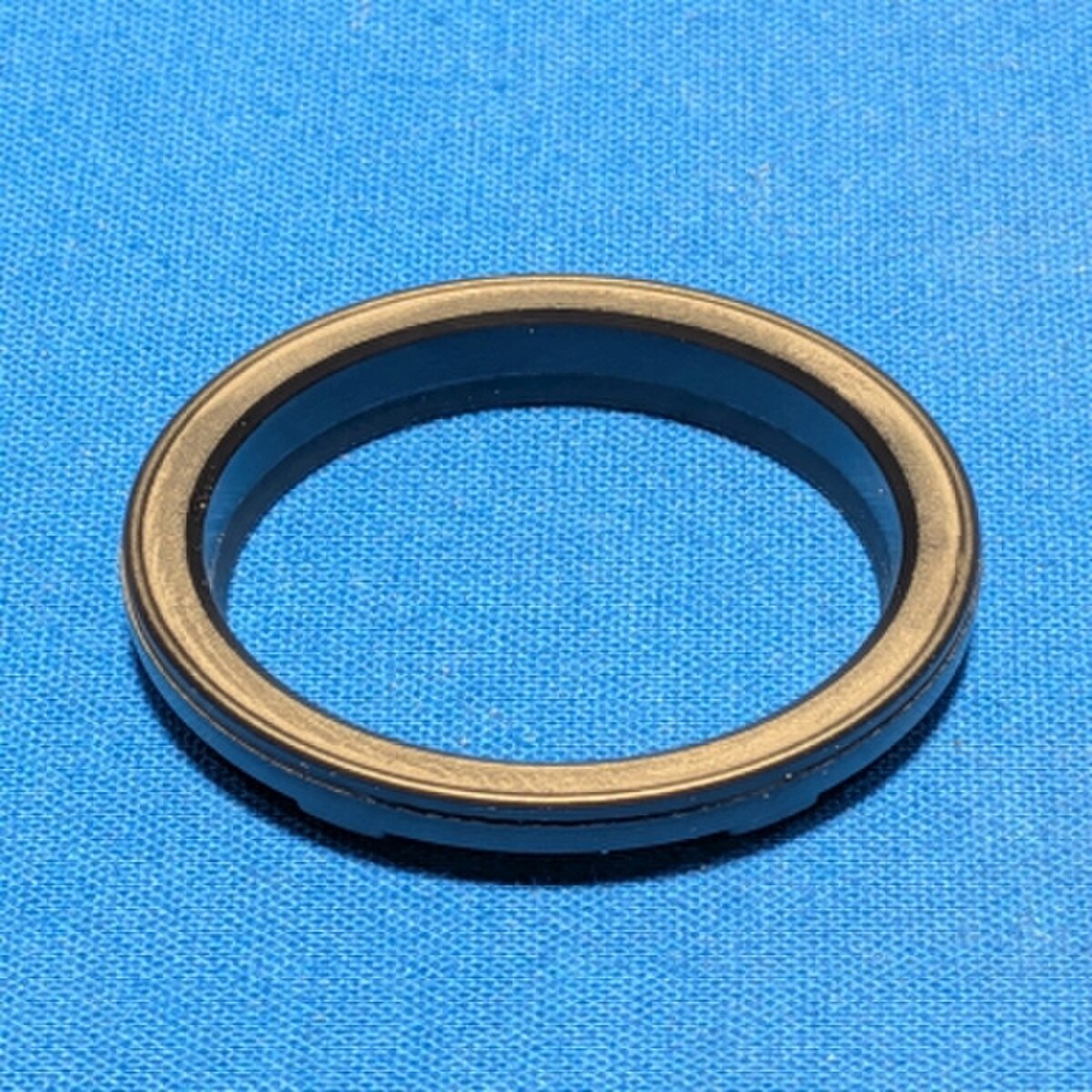

Cushion Seals are designed to cushion the stroke of the piston in cylinders by acting as a non-return valve.

Near the end of the cylinder stroke the cushion spear contacts the seal and pushes it against the radial housing wall thereby creating pressure to decelerate the piston.
