T 125 X 30 X 50 X 8

• Max Temperature: -30°C/-22°F – 100°C/ 212°F
• Linear Velocity: ≤ 1 m/s
• Max Pressure: ≤ 1.2 MPa (12 bar/174 psi)

TDUO P

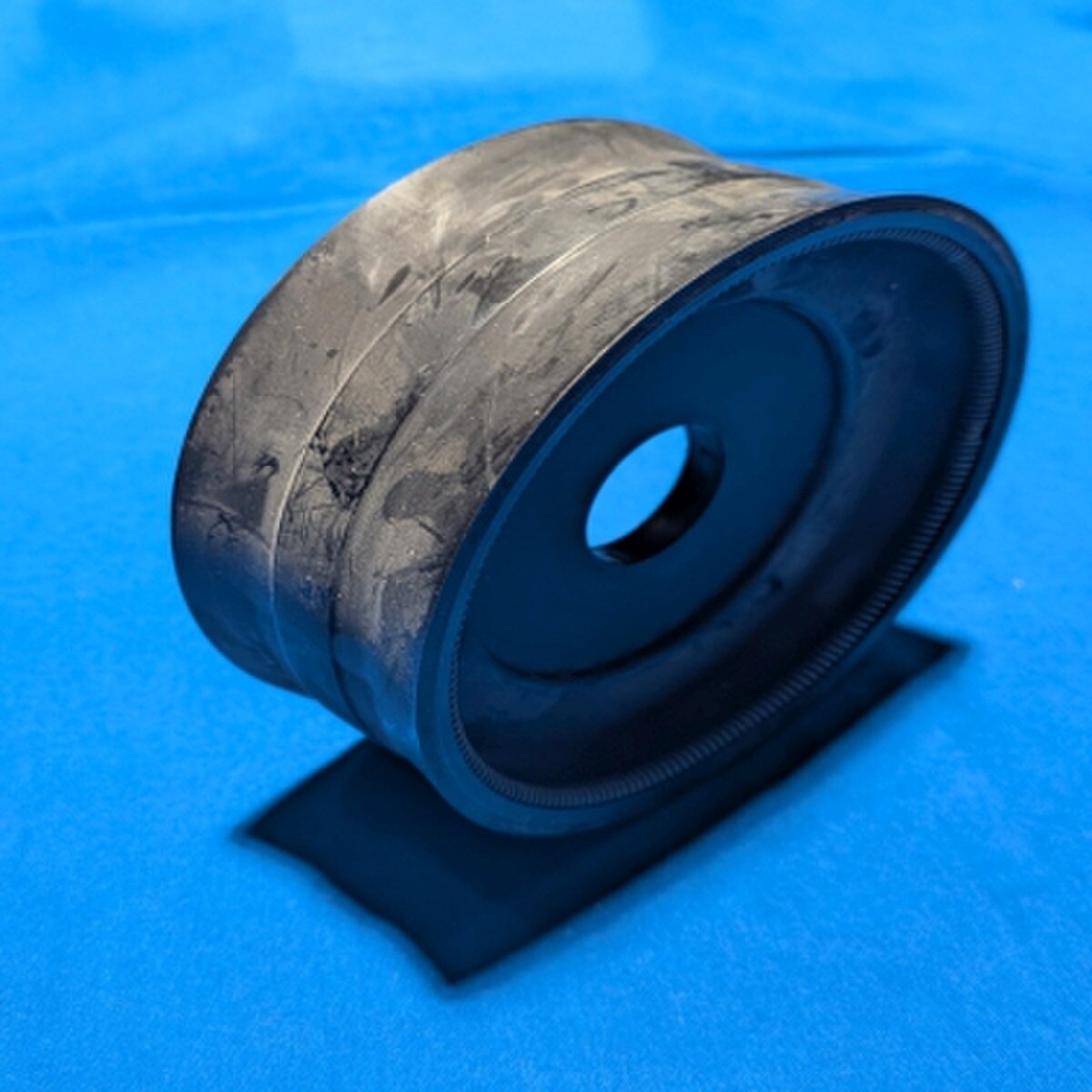

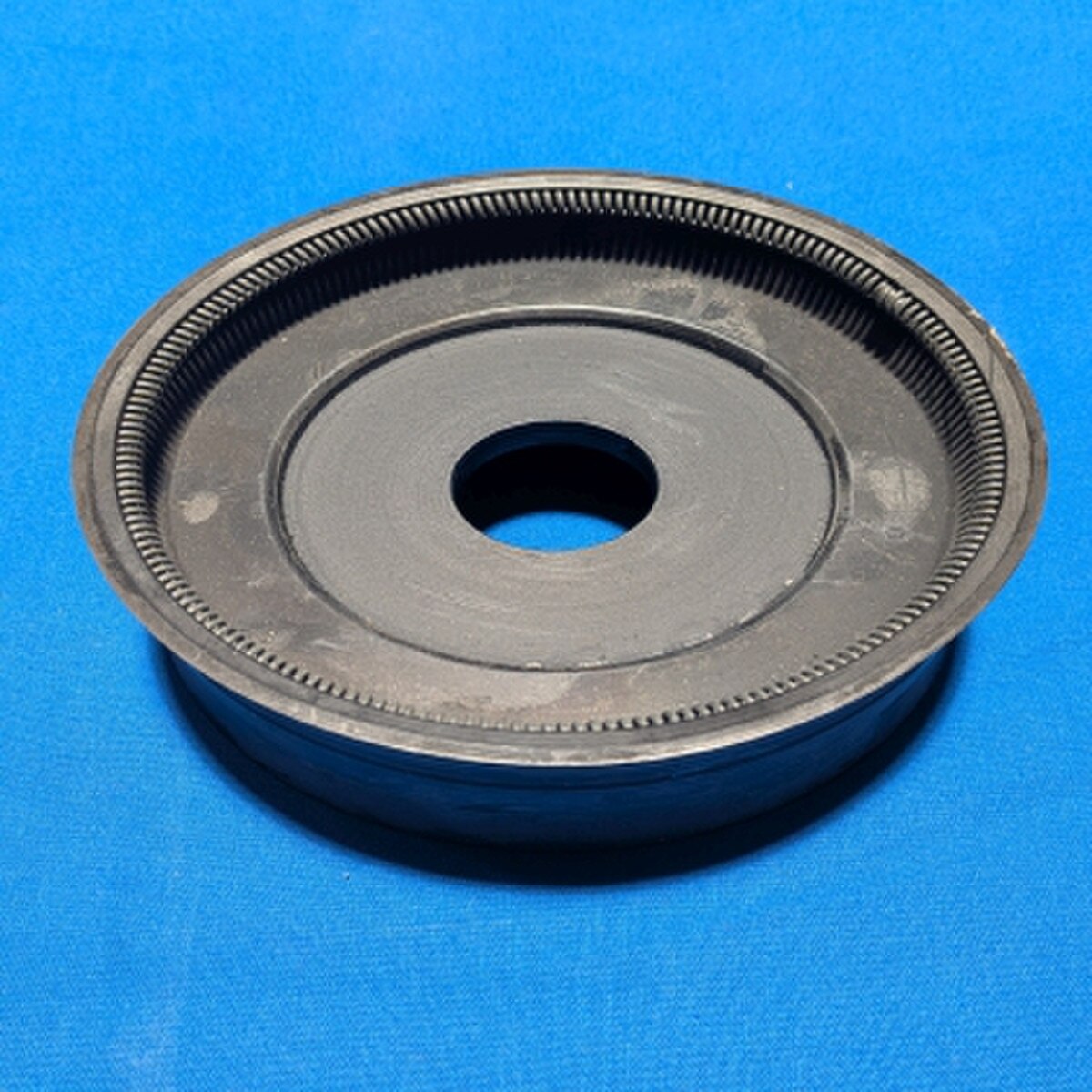

Complete piston with steel body bonded to spring loaded sealing lips with special pneumatic sealing edges. Ready to fit, double acting complete piston with integral guide. Easily assembled on the piston rod without additional sealing elements. The form with radial air relief passages on the front faces ensures pressure distribution at the end of stroke.

Material:

72 NBR (Natural Rubber 72 Shore A)

Body: Normal Mild Steel

Application:

Prepared, dried and lubrication free compressed air (after assembly greasing)

The complete piston is fitted to the piston rid with washers and a nut prior to fitting into the cylinder.
