FL 29.7 X 35.9 X 2 V

• Maximum Pressure: 63 MPA
• Temperature: -18°C to 200°C (-0.4°F to 392°F)
•  FKM 80 Shore A Green, Brown, or Black

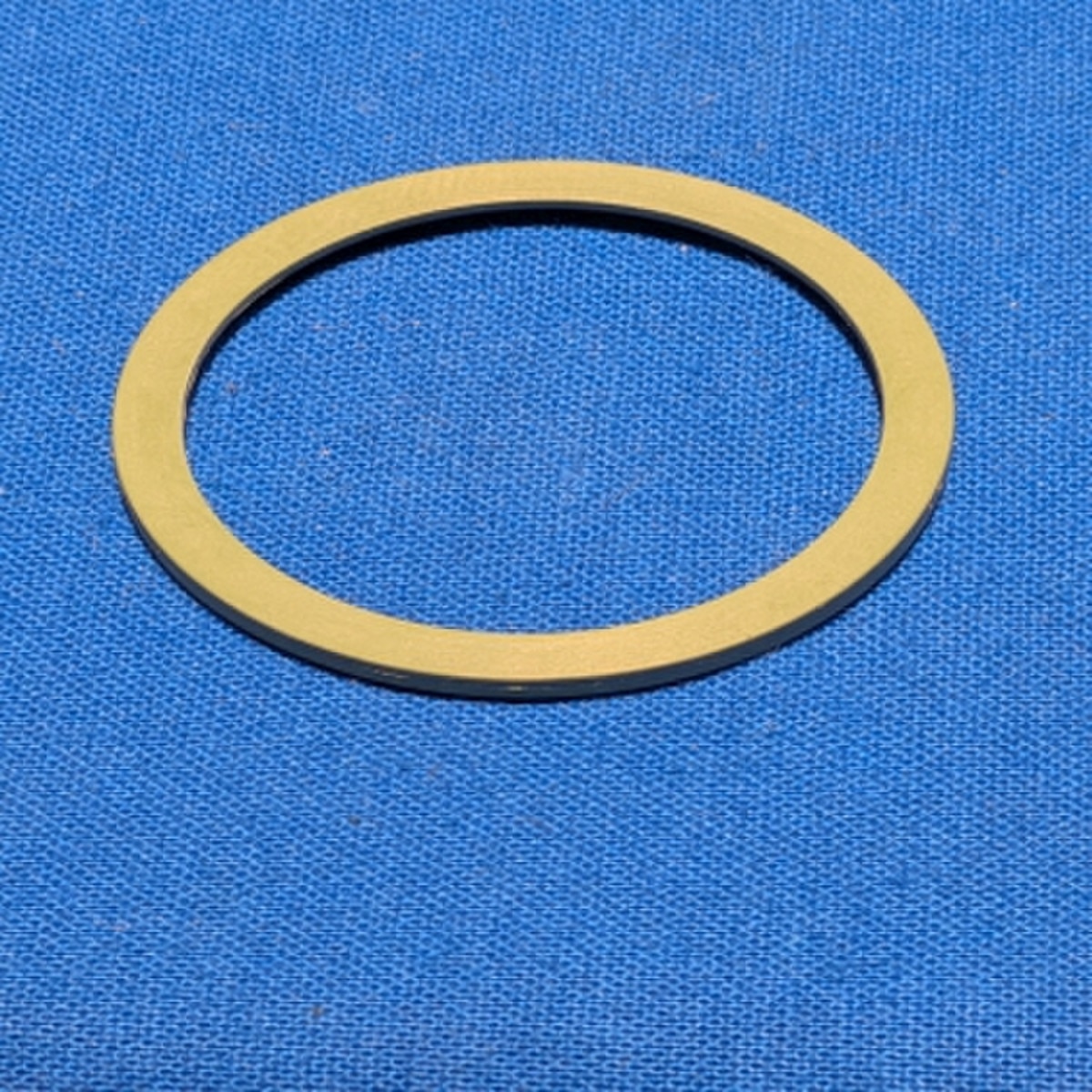

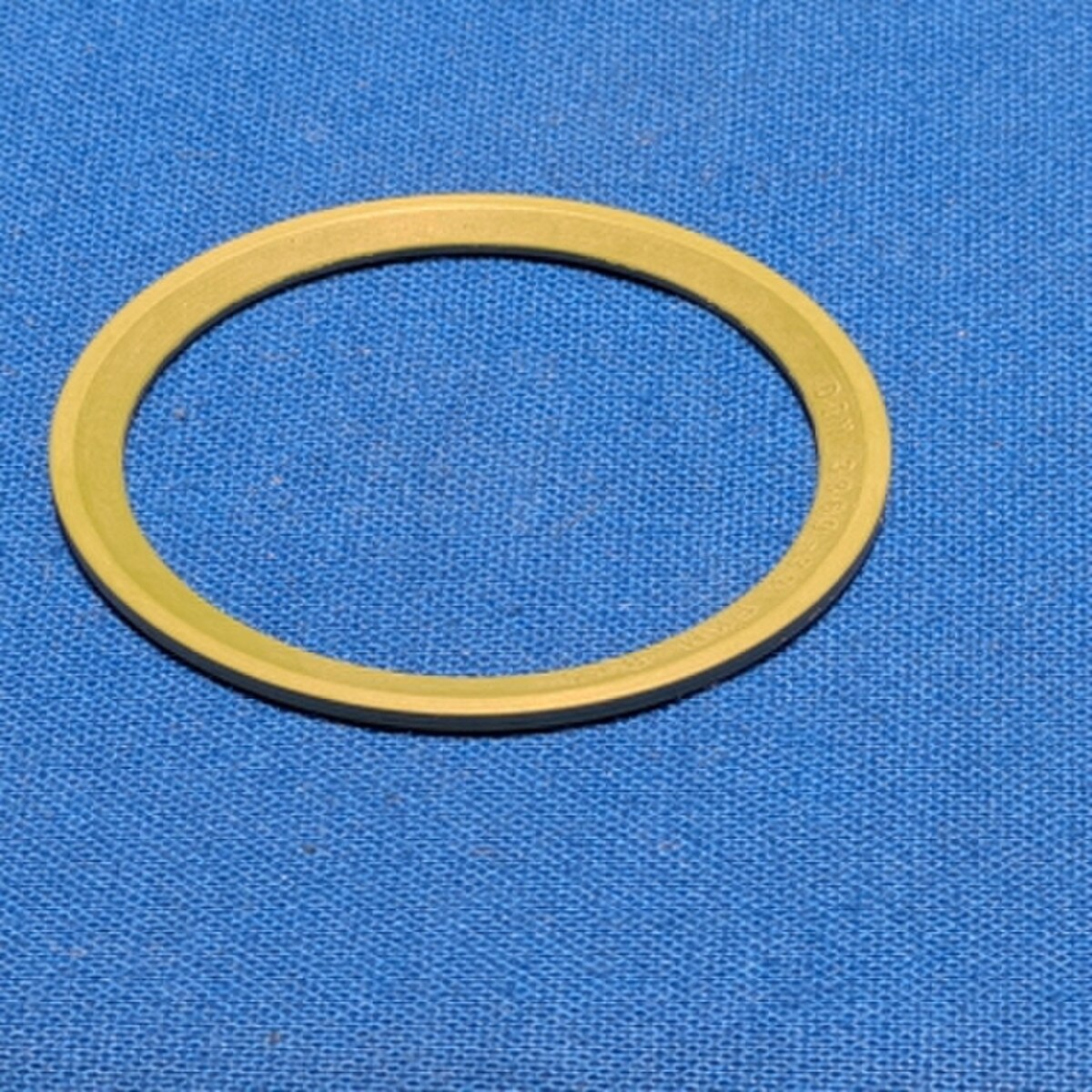

This elastomeric seal is used as an axial static seal for threaded ports and stud ends in hydraulic fluid power applications. The cross-section remains practically constant even under high pressure.

Advantages:

• Minimal mechanical deformation of the cross-section
• Outstanding sealing behavior over long periods
• No twisting in the groove
• No relative movements during pressure cycles
• Dimensionally stable under pressure
• High leak tightness compared to metal / metal sealing
