Y 14 X 22 X 5

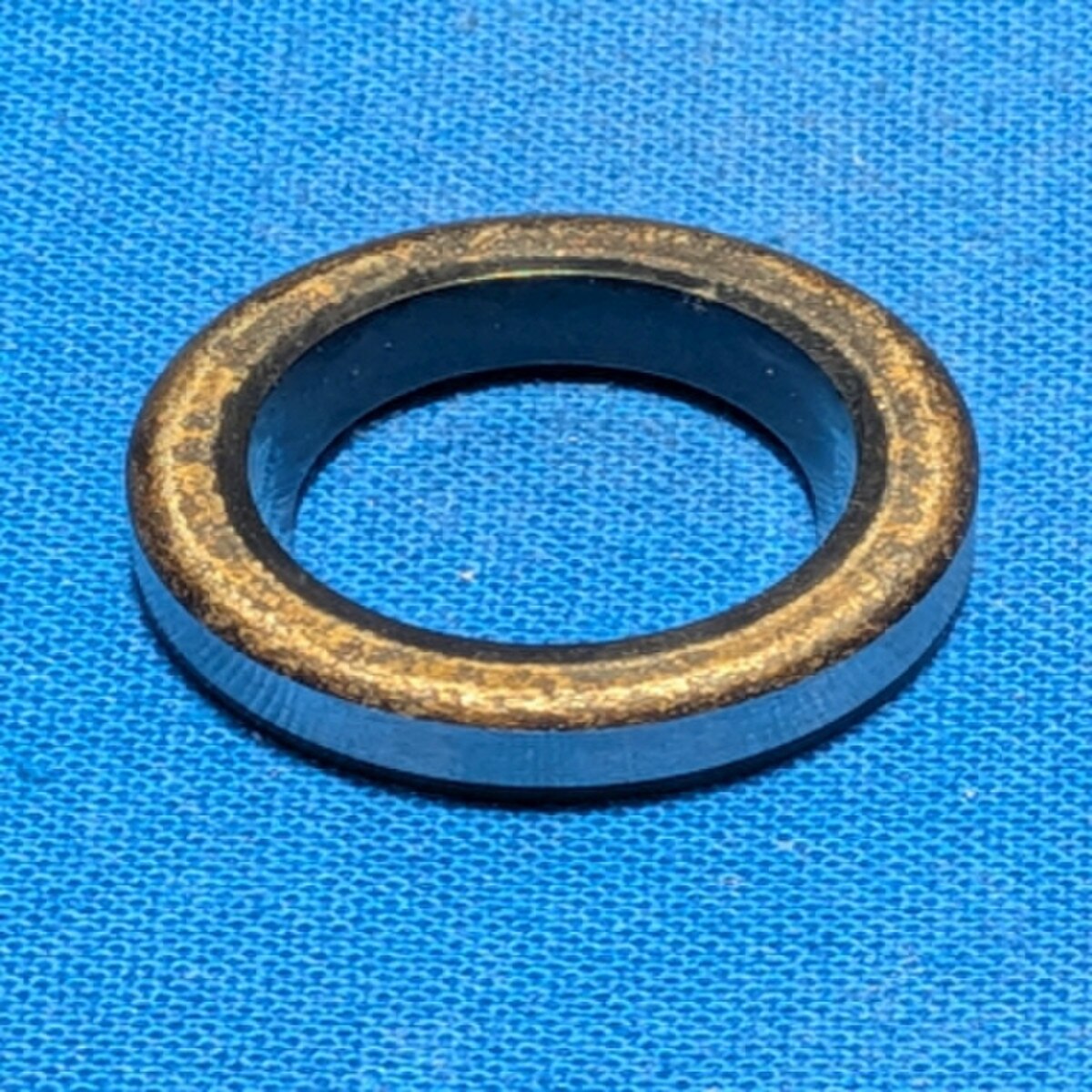

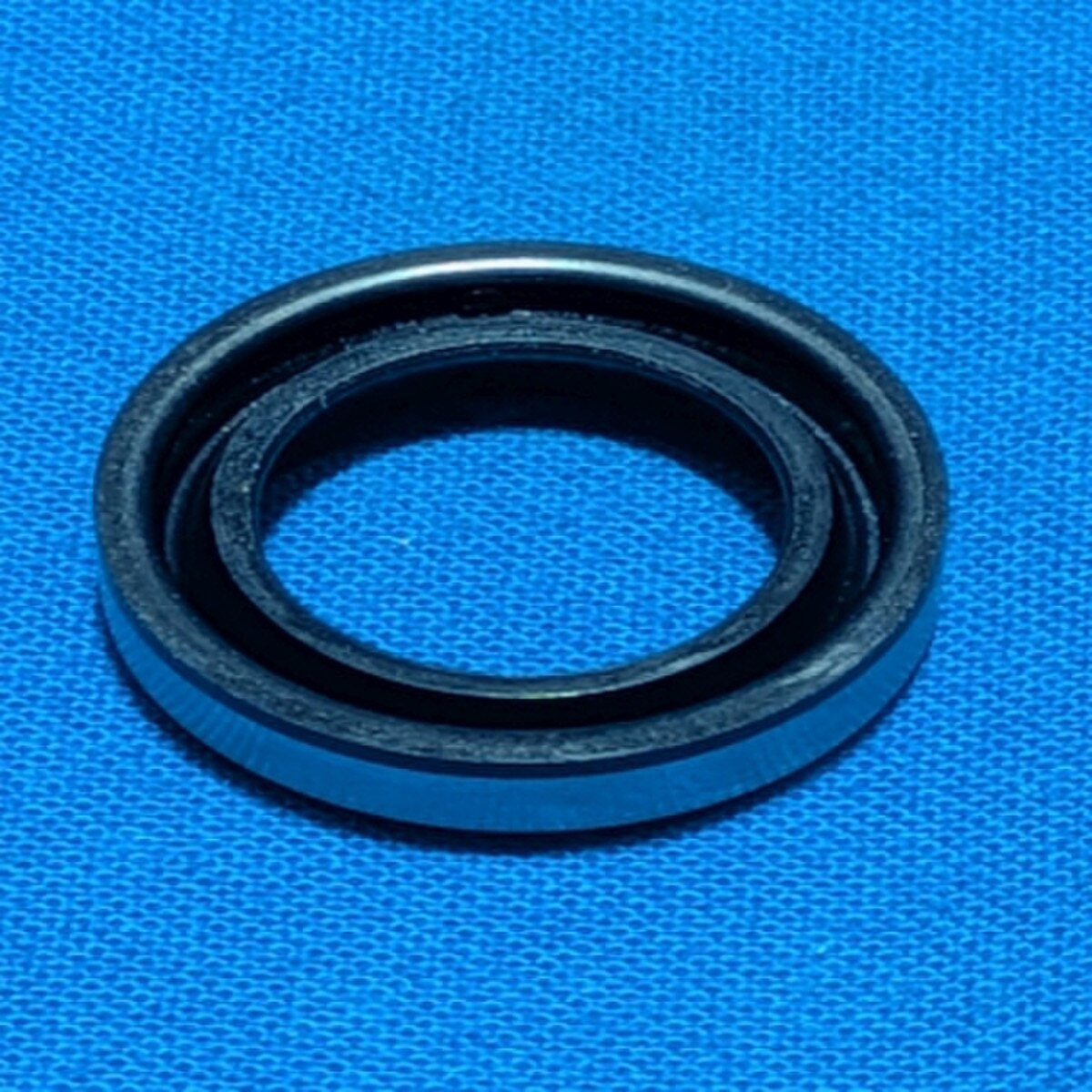

Cushion Seals are designed to cushion the stroke of the piston in cylinders by acting as a non-return valve.

Near the end of the cylinder stroke the cushion spear contacts the seal and pushes it against the radial housing wall thereby creating pressure to decelerate the piston.
