T 160 X 20 X 40 X 2.5

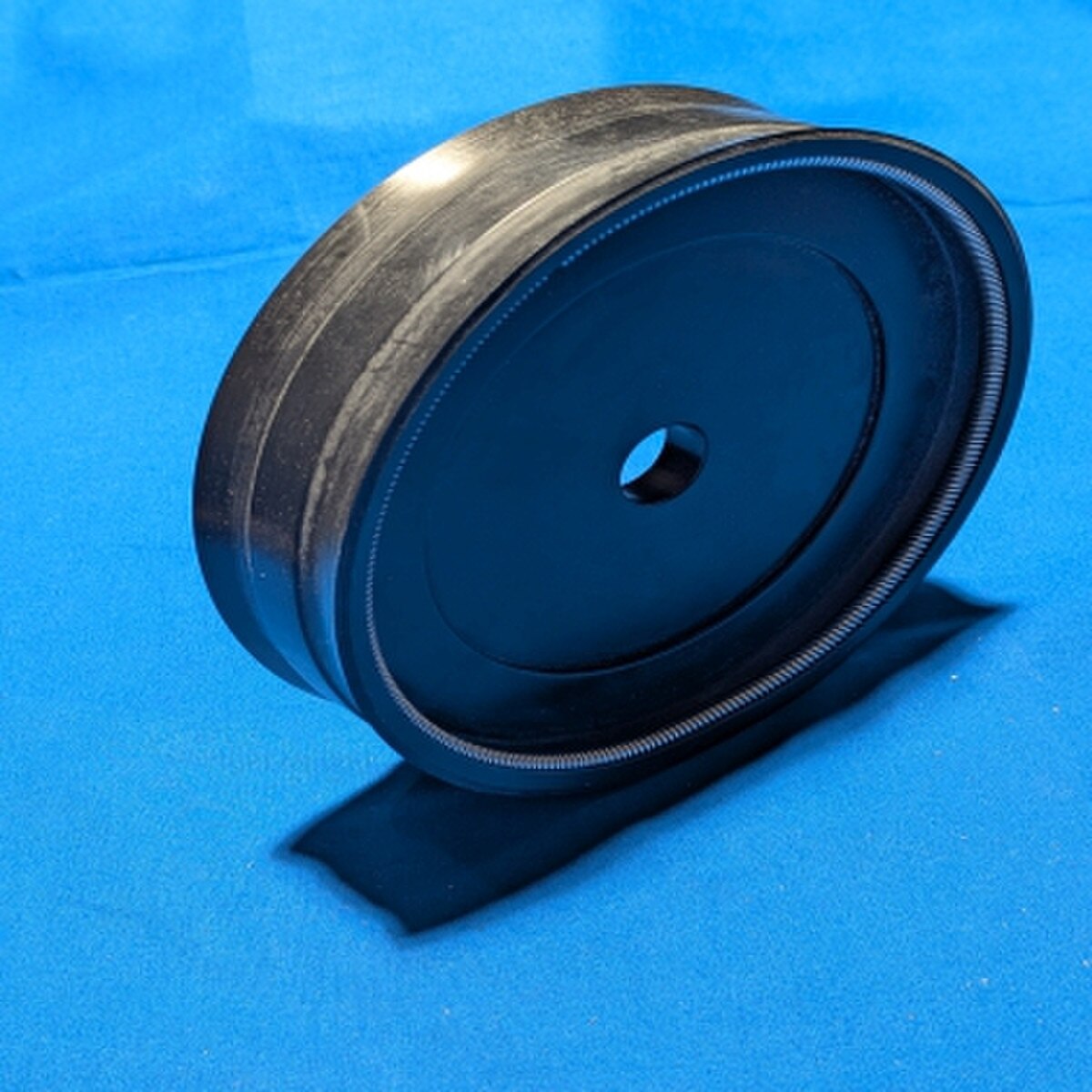

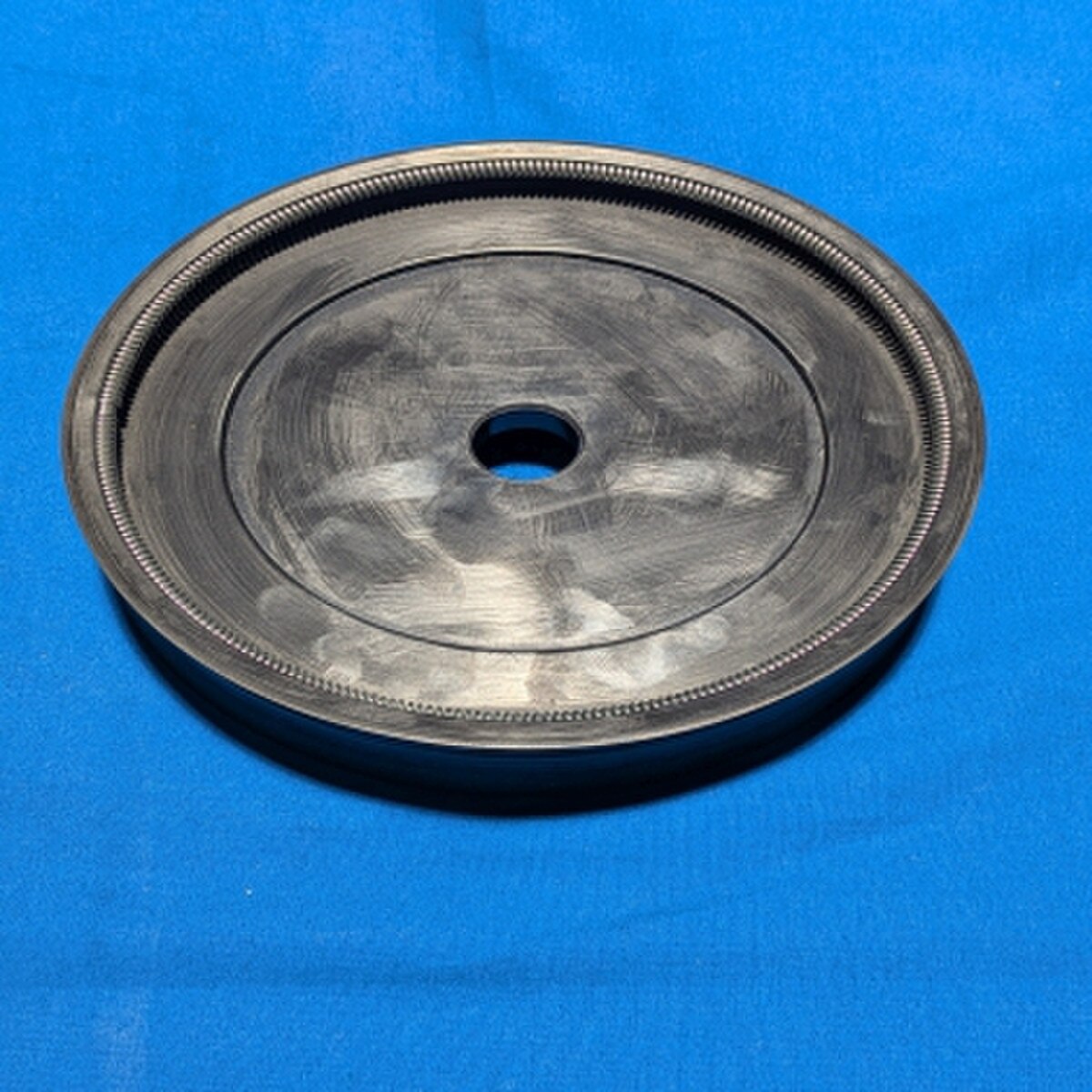

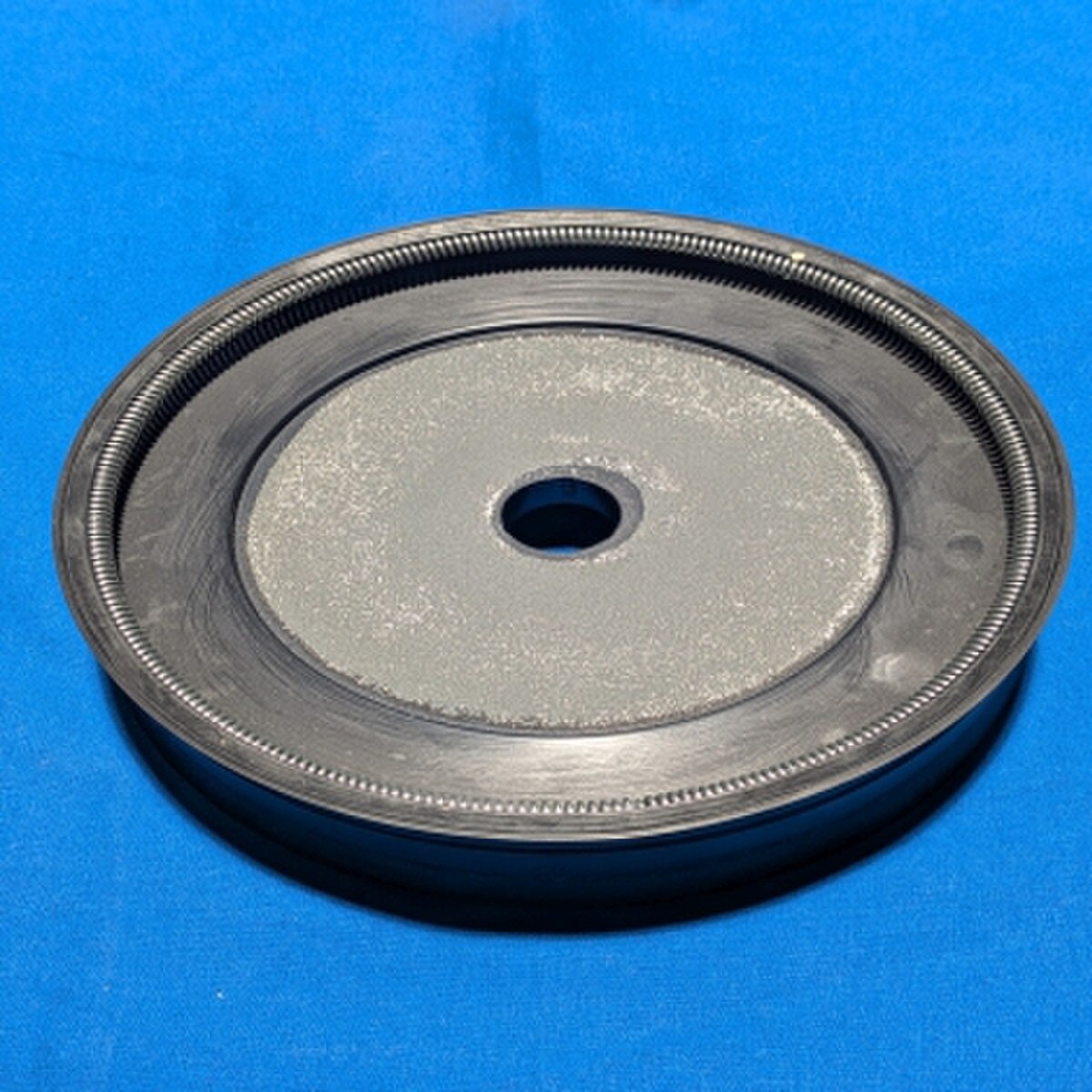

• Complete piston with steel body bonded to spring loaded sealing lips.
• Max Temperature: -30°C/-22°F – 100°C/ 212°F
• Linear Velocity: ≤ 0.5 m/s
• Max Pressure: ≤ 6MPa (60 bar/870 psi)

TDUO H

Material:

90 NBR (Natural Rubber 90 Shore A)

Garter Springs: Spring Steel Wire

Body: Normal Mild Steel

Application:

Mineral Oils, Hydraulic Fluids

Complete piston for secondary hydraulic applications, preferable for use only as a replacement part.
